What materials are Patrol Boats usually made of?
2025-09-03
Patrol boats are a common type of vessel used in offshore operations, requiring exceptional strength, durability, and performance to withstand challenging maritime environments, from coastal patrols to rescue missions. Understanding the core materials used in their construction is crucial for understanding and selecting the right patrol boat. Let's explore aluminum alloy, the primary construction material for patrol boats, with Qingdao Seastar Sport Equipment Co., Ltd.
Key Advantages of Aluminum Alloy
Corrosion Resistance: A naturally formed protective oxide layer naturally forms, making corrosion resistance a special consideration in seawater operations, otherwise it will be difficult to maintain its service life.
High Strength-to-Weight Ratio: Improves fuel efficiency, speed, and payload capacity.
High Weldability and Impact Resistance: Ensures structural integrity and longevity.
Low Risk: Effectively mitigates the risk of penetration associated with FRP materials.

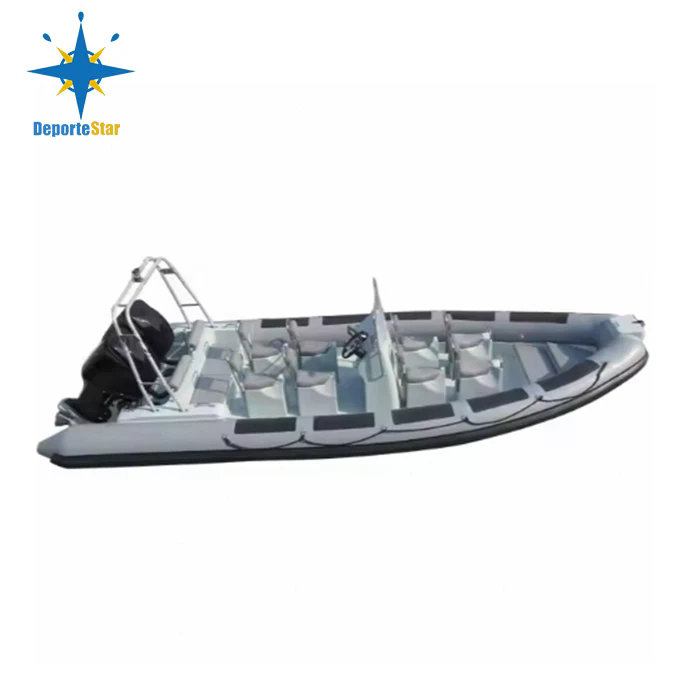

Key Features of Our Patrol Boats
Hull Structure: Constructed from 6mm to 10mm thick aluminum plates, this generous thickness ensures the patrol boats' exceptional impact resistance and structural rigidity.
Hull Design: The ultra-deep V-shaped hull provides excellent seakeeping, enabling stable and efficient navigation through rough seas, maximizing crew safety.
Tubing: Integrated large-diameter Hypalon or PVC tubing. Highly buoyant tube rings provide secondary stability, shock absorption, and unsinkability.
Stiff Frame: The internal structure is reinforced with longitudinal frames and bulkheads made from the same marine-grade aluminum, ensuring torsional rigidity.
Application Scenario
Law Enforcement and Border Patrol: High-speed interdiction and surveillance.
Search and Rescue: Reliability and stability in extreme conditions.
Port Security and Harbor Patrol: Shallow draft capability and maneuverability.
Coastal and Environmental Monitoring: Durability for sustained operations.
Utility and Workboat Support: Landing craft variants for personnel and material transport.
Sightseeing Patrol: A safe and stable passenger transport platform.
Technical Specifications
| Feature | Specification | Advantage |
| Hull Design | Super Deep V (Variable Deadrise) | Superior handling, reduced slamming, increased efficiency in rough seas. |
| Tube Fabric | Hypalon (CSM) or PVC (1100D+) | High UV/weather resistance, puncture resilience, long service life. |
| Tube Diameter | Large Diameter | Enhanced buoyancy, stability, safety margin, crew comfort. |
| Craft Length | 5.8m - 11m+ (Customizable) | Suitable for diverse operational profiles. |
| Beam | 2.3m - 3.5m+ (Customizable) | Provides deck space and stability. |
| Power Options | Single or Twin Outboard; Inboard Diesel | Flexibility for speed, range, or torque requirements. |
| Console/Mounts | Heavy-Duty Aluminum Fabrication | Robust platform for electronics, controls, and weaponry. |
