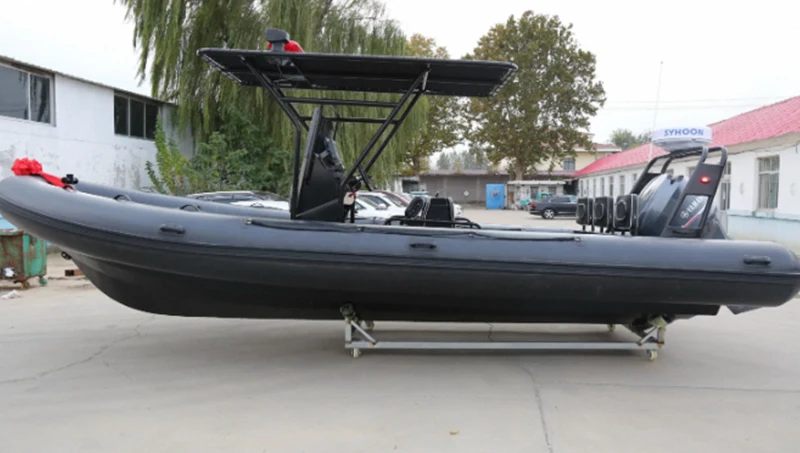

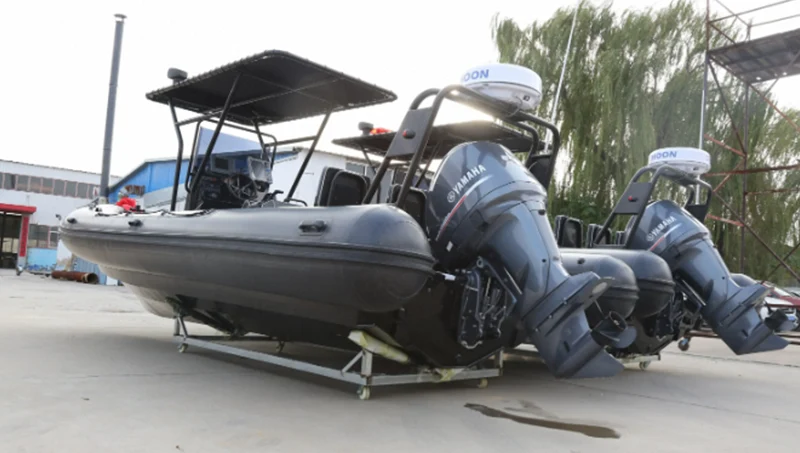

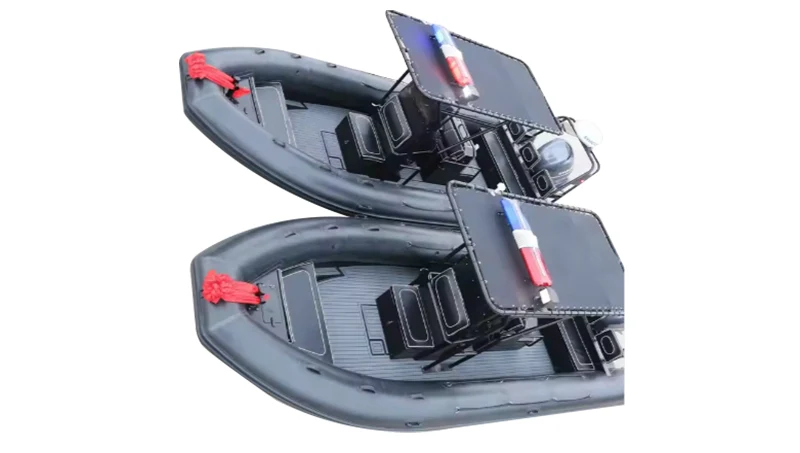

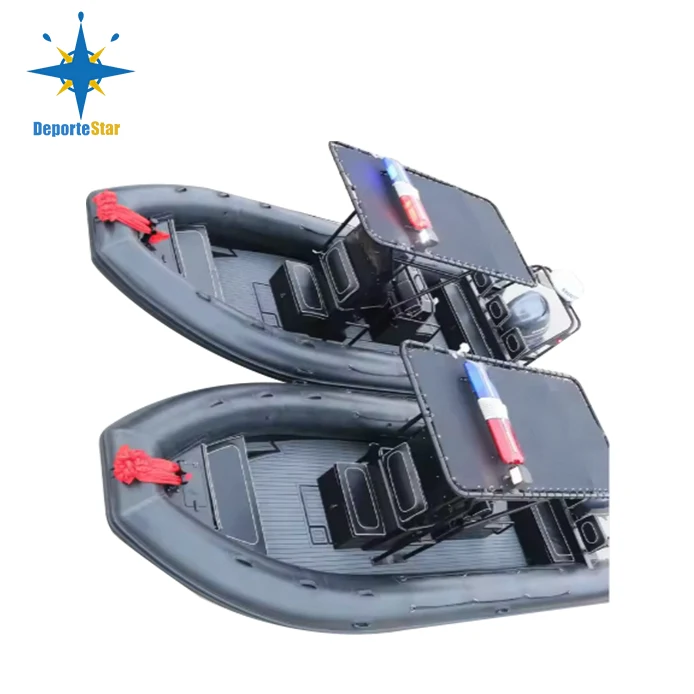

Rib 760 Fast Patrol Boat from Qingdao Seastar Sport Equipment Co.,Ltd, which is one professional rigid inflatable boat and aluminum rib boats manufacturer, also include some small aluminum boats.
Botal length: |
760cm |
Total width: |
288cm |
Tube diameter: |
56cm |
Net weight: |
about 800kgs |
Max person: |
13 persons |
Max engine power: |
250HP/186.42KW |
Packing size: |
750 x 200 x110 cm |
Max payLoad: |
1960kgs |
Design category: |
C |
Air chamber number: |
7 |
Packing in a container |
2 sets/40 feet container |
Loading port |
Qingdao port,China |
oars |
2 |
Foot pump |
1 |
Repair kit |
1 |
front and back cabin with cushion |
1 |
center console include windscreen,oil gauge and 4 point switch |
1 |
seat box |
1 |
Alu steel roll bar with 3 navigation lights |
1 |
300L built in fuel tank |
1 |
bilge pump with switch |
1 |
EVA floor |
1 |
T-top sunroof |
1 |
life jacket |
13 |
100A battery and battery box |
1 |
electric pump with battery |
1 |
7.5kgs stainless steel anchor |
1· |
hydraulic steering system with |
1 |
Boat cover |
1 |
VHF radio |
1 |

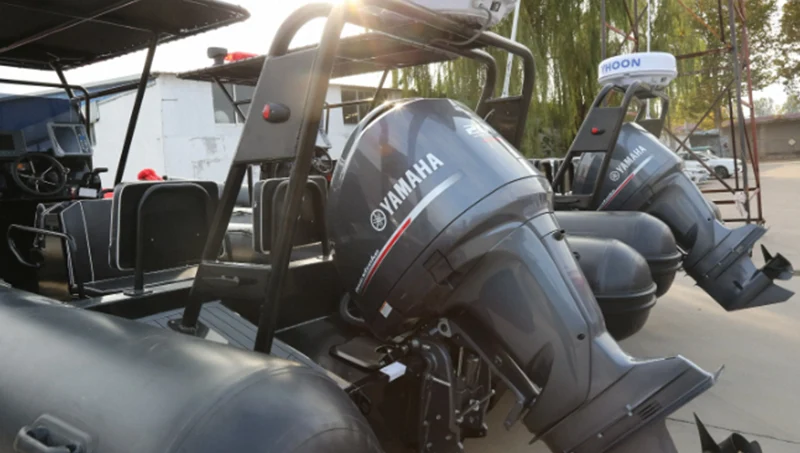

YAMAHA F200BETX(4stroke, |
1 |
Alarm lamp |
1 |
Searchlight(Hernia white light) |
1 |
Radar (China brand, S1000) |
1 |
GPS(Chart of Cote d 'Ivoire, |
1 |
Testing boat in the river |
1 |
1. All of our aluminum rib boat are made of Marine-grade aluminum plate.
2. Aluminum Rib 760 Fast Patrol Boat Welding Specification :
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place.
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders.
3. Aluminum Patrol Boat Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system.
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses.
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe .
Design Features of hull for DL rib 760
Beautiful Deep V double aluminum hull
Super light, faster speed, steady driving
Recyclable, more environmental friendly
Non-skid flooring for the comfort and safety of passengers
Automatic electric bilge pump
300L built in fuel tank
Production Process:
CE certification Wall:
Boat Color Options:
Rib Boat Optional Parts Choice:
Packing & Transport:
Q1: Why choose us?
A1: High performance and high quality boats with 20 years experience in designing and manufacturing.
Q2:What gives you an unfair advantage?
A2: Professional design team with professional manufacturing, strict quality inspection and high quality service.
Q3: How about the warranty?
A3: We use high quality German Valmex PVC/ French ORCA fabric or Taiwan Hypalon tube material, which are durable with 3 to 5 years warranty.
Fast patrol boat rib boat 760 more questions and inquiry, please contact us by email or directly send us messages by whatsapp number +8615666791560.
